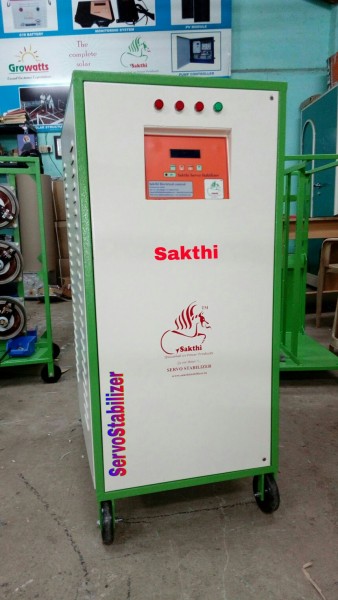

Sakthi air cooled stabilizers are rugged proven over 8 years. Air cooled stabilizers are available in natural and forced air cooled in a range from 3 – 2500 KVA. -

Capacity 3-2500 KVA Input Voltage Range*

A) Range 1 : 295 V-465 V
B) Range 2 : 340 V-480 V
C) Range 3 : 360 V-460 V
D) Other ranges as per customer requirements
Output Voltage 380/400/415 V 1% Set Input Frequency 47-53 Hz Control Type Digital-Micro controller based Correction Speed* 70 V per second Reset Manual / Auto Reset with time delay and programmable Protections A) Electronic over & under voltage trip with time delay for input & output B) Electronic overload protection and short circuit protection upto 30 KVA through MCB and the Manual bypass is built in. Above 30 KVA MCB/MCCB is an optional.
C) Surge Arrester/RF suppressor (OPTIONAL)
D) Phase reversal protection and cut off
E) Single phase prevention and cut off
F) Neutral failure protection
G) Frequency cut off protection
H) Earth neutral voltage cut off protection Metering Digital Type (Class 1 Accuracy With Full Scale ± 1)

A) Input phase to neutral
B) Input phase to phase
C) Output phase to neutral
D) Output phase to phase
E) Load Current in all the phases
F) Frequency
Nature Of Cooling Natural air cooled upto 150 KVA & Forced air cooled above 150 KVA Effect Of Power Factor Nil Waveform Distortion Nil Annunciation Panel Non Latching LED indications with dual colour for Overload Latching Conditions Efficiency > 98% Cabinet Colour Siemens Grey Provision Of Cabling Input and Output terminations with provisions for fixing cable glands Servo Motor Drive Rugged AC step sychronous motor Operating Temperature 0-45° C - See more at.
